The leaf is flush on the corridor side and opens into the room.
T-Shaped Aluminum Wood Door

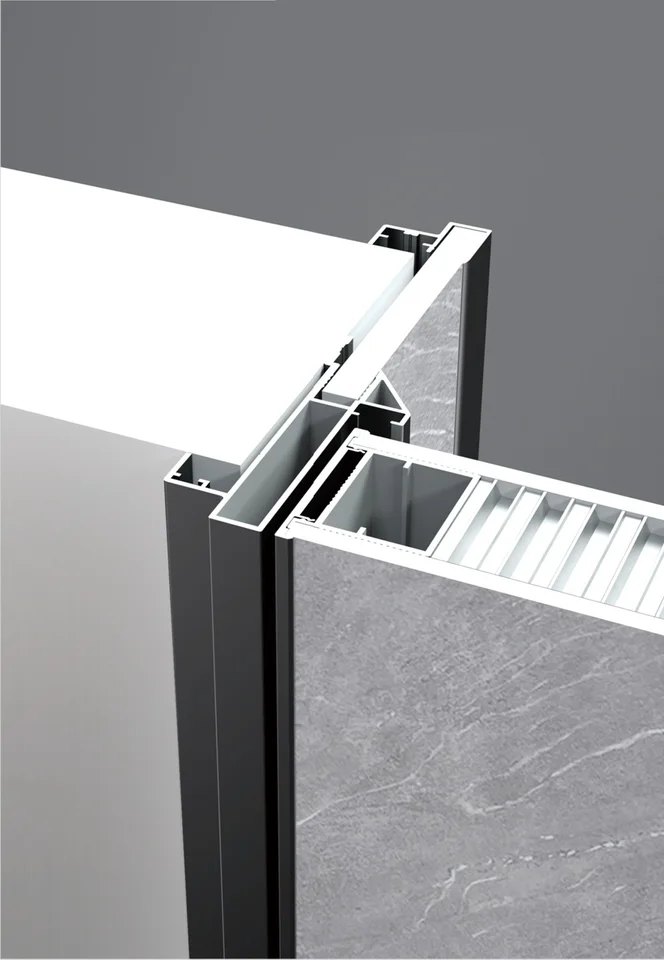

The T-shaped aluminum wood door is our newest invisible door for 2026. The frame hides inside the wall, so the door leaf sits flush with the surface. As a result, the room keeps a clean, quiet line from floor to ceiling. In addition, the triple-silent seal closes softly and blocks noise between rooms.
ALUMINUM WOOD DOORS · T FRAMEOVERVIEW
Why choose the T-shaped aluminum wood door
Each door in this range uses a 38.2 × 21.5 mm main frame and a 42.4 mm aluminum honeycomb keel. Because the core is aluminum, the leaf stays flat in humid rooms. Therefore it suits bedrooms, studies, hotel rooms and apartment corridors.

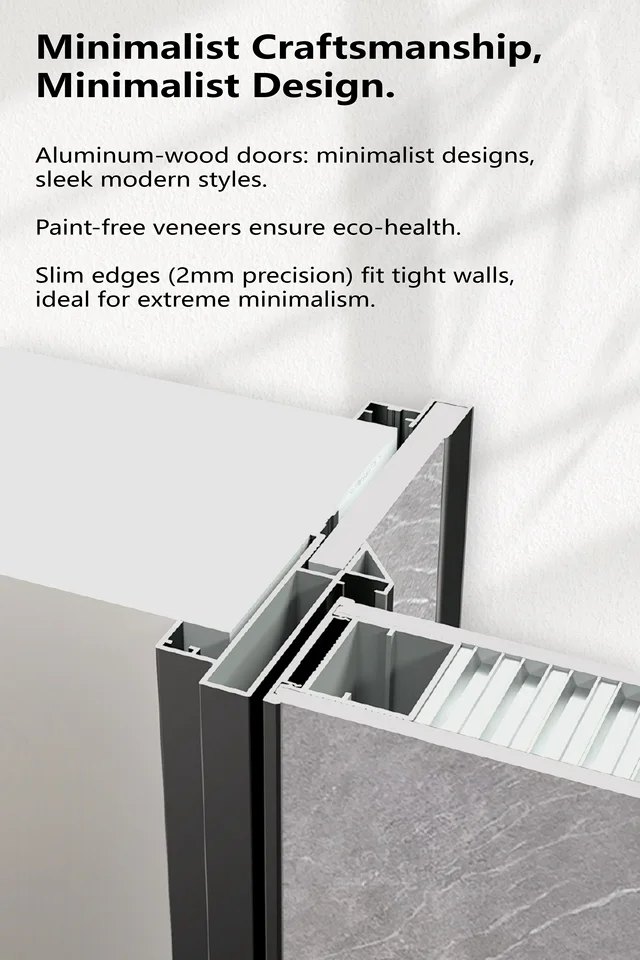

The door is part of our aluminum wood doors range. Compare it with the 45 series aluminum wood door, 50 series aluminum wood door, 55 series aluminum wood door before you decide.
OPENING OPTIONS
Styles available on this frame
A triple-silent version for bedrooms and offices that need extra quiet.

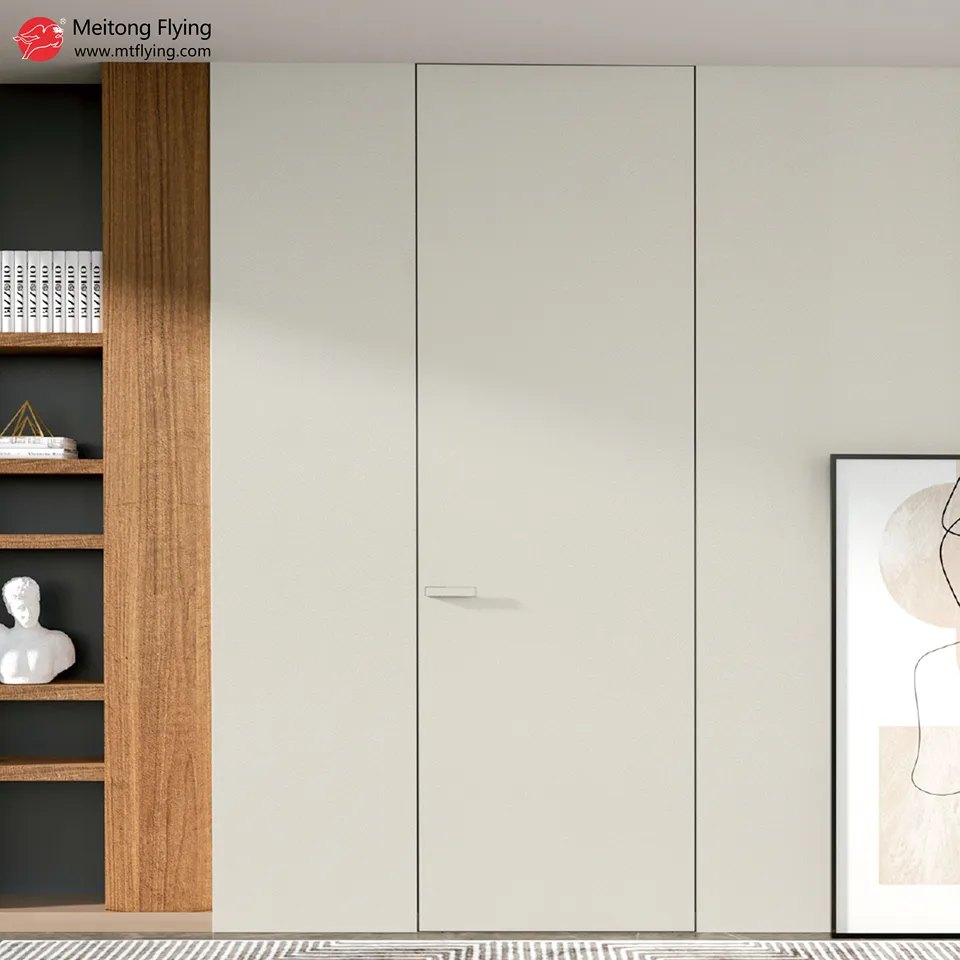

No visible casing. The wall paint or panel runs right up to the door edge.
The door can be finished with the same board as your wall cladding.
TECHNICAL DATA
T-shaped aluminum wood door specifications
- Main frame: 38.2 × 21.5 mm
- Keel: 42.4 mm aluminum honeycomb
- Seal: 10 × 3 self-adhesive strip and custom rubber strip
- Sub-frame: 9 × 8.2 integrated corner key
- Finish: Enamel Copper, Black Porcelain, Platinum Gray, Aurora Grey
HARDWARE
Locks and hinges
- Mis lock with extension rod
- Mingmen lock or one-word minimalist lock
- Dedicated concealed hinges
- Fixing plates for quick installation
All profiles are 6063-T5 aluminum. Finishes include powder coating, wood-grain film and electrophoretic sand colors.
PRODUCTS
Order the T-shaped aluminum wood door
The T-shaped system is new in 2026. It is made to order, so send us your door schedule for a price. You can also see a related invisible door listing on Alibaba.
GALLERY
Project photos
HOW TO ORDER
From drawing to delivery
01Send your sizes
Share the opening sizes, wall thickness and quantities.
02Choose the finish
Pick a color, board and lock from our sample cards.
03Approve the sample
We make a pre-production sample before mass production.
04Inspect and ship
Each order gets a final inspection before shipment.
FAQ
Questions about the T-shaped aluminum wood door
Is this door a solid wood door?
No. The frame and keel are aluminum. The leaf is finished with eco board, so it looks warm but does not warp like solid wood.
Can the door be painted on site?
Yes. The flat outside face can be painted or covered with the same wall panel as the room.
What do you need for a quotation?
Send the opening width and height, the wall thickness, the opening direction, the finish and the quantity.
Get a quote for your project
Send your door list today. We reply with a price, drawings and a sample plan within one working day.
