Regular, simple and upgraded versions on one frame.
50 Series Aluminum Wood Door
The 50 series aluminum wood door hides the whole frame behind a flat outer face. Therefore the door reads as part of the wall. It is the right choice when you want an invisible door with a stronger, deeper frame than the 45 series.
INTERIOR DOOR SYSTEM · 50 mm FRAME.OVERVIEW
Why choose the 50 series aluminum wood door
A door in this range uses a 14.2 × 24.2 mm integrated corner frame. The keel is 38.7 mm for 4–5 mm boards or 31.1 mm for 8–9 mm boards. As a result, the leaf stays rigid even at heights close to three meters.
The door is part of our aluminum wood doors range. Compare it with the T-Shaped Aluminum Wood Door, 45 series aluminum wood door, 55 series aluminum wood door before you decide.
OPENING OPTIONS
Styles available on this frame
A pair of leaves for wide openings with magnetic closing.
For corridors where the door must open away from the room.

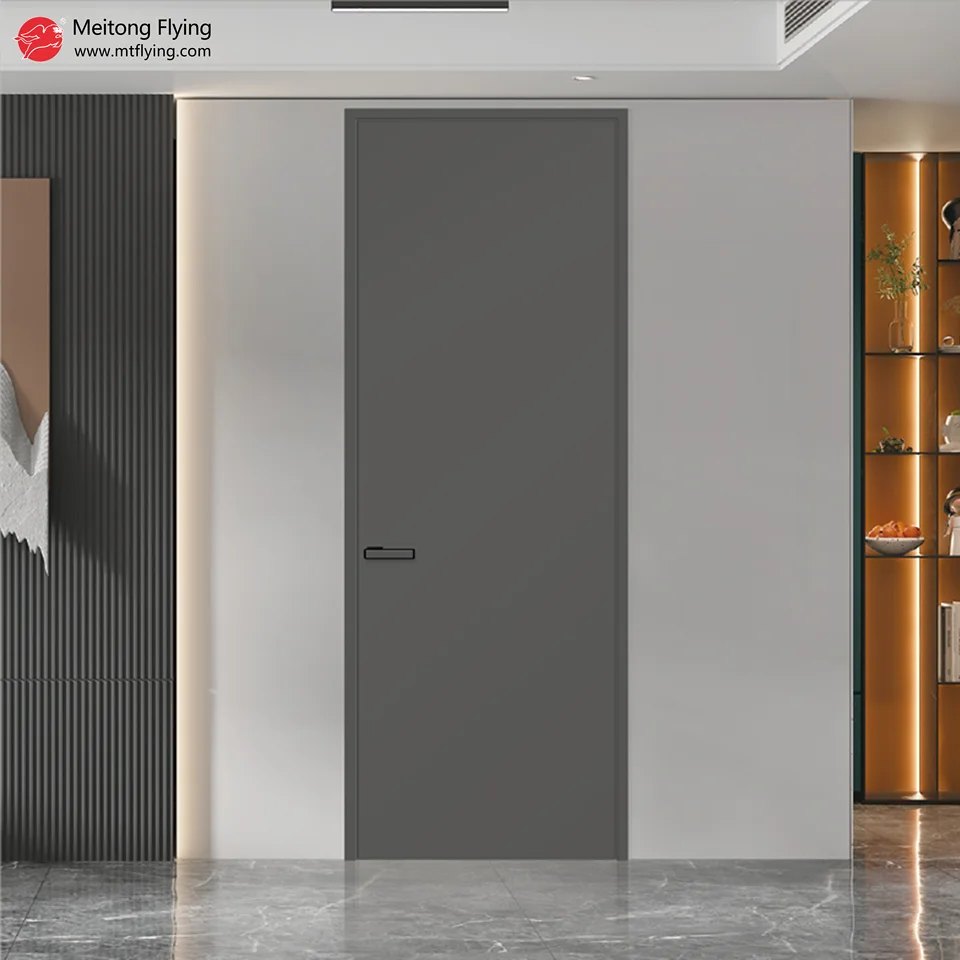

A visible frame version when the wall finish is already complete.
TECHNICAL DATA
50 series aluminum wood door specifications
- Main frame: 14.2 × 24.2 mm integrated corner key
- Keel: 38.7 mm (4/5 mm board) or 31.1 mm (8/9 mm board)
- Board: 6 mm calcium silicate board or 9 mm eco board
- Bottom rail: connection angle aluminum
- Finishes: Jazz Black, Moonlight Gray, Tap-Tap White, Taro Gray and wood grains
HARDWARE
Locks and hinges
- Mis lock or minimalist one-word lock
- 3D hinge, five-hole flag hinge or universal hidden hinge
- Hydraulic hinge as an option
- 10 × 3 self-adhesive seal strip
All profiles are 6063-T5 aluminum. Finishes include powder coating, wood-grain film and electrophoretic sand colors.
PRODUCTS

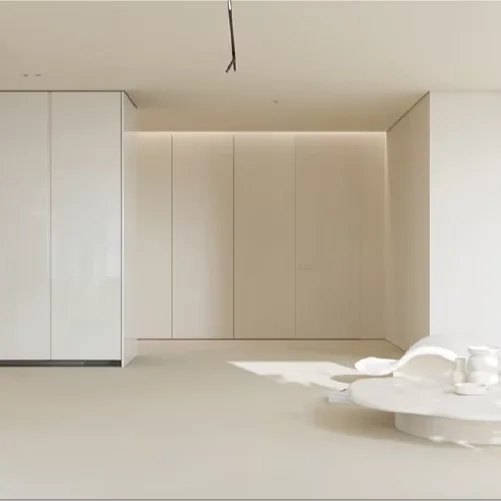

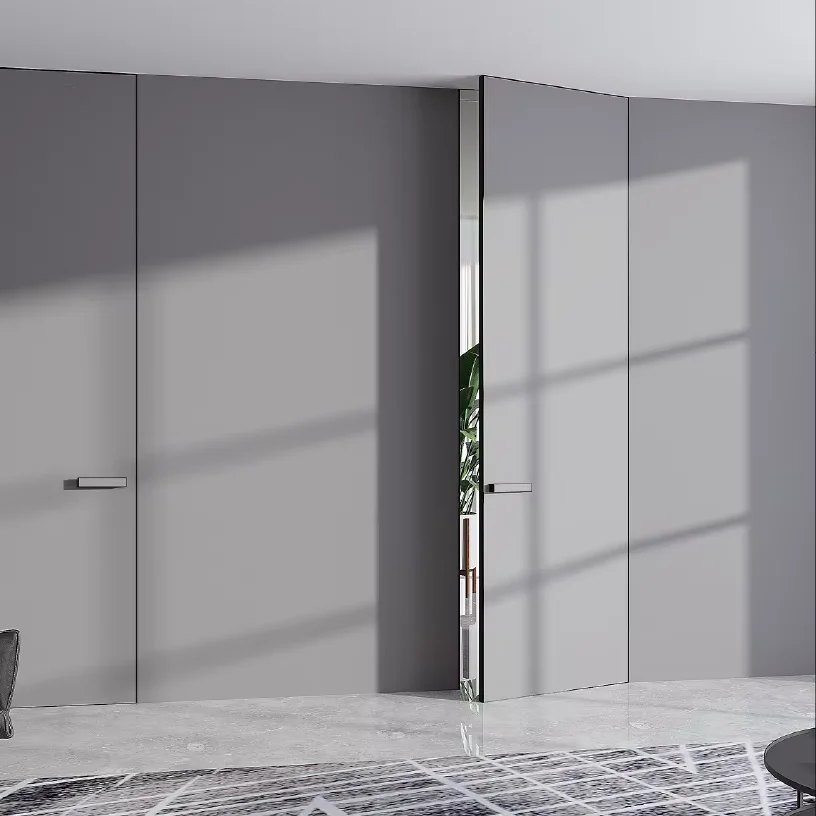

50 Series Aluminum Wood Door products
These listings are open for orders on our Alibaba store. Click a product to see prices, photos and trade terms.
GALLERY

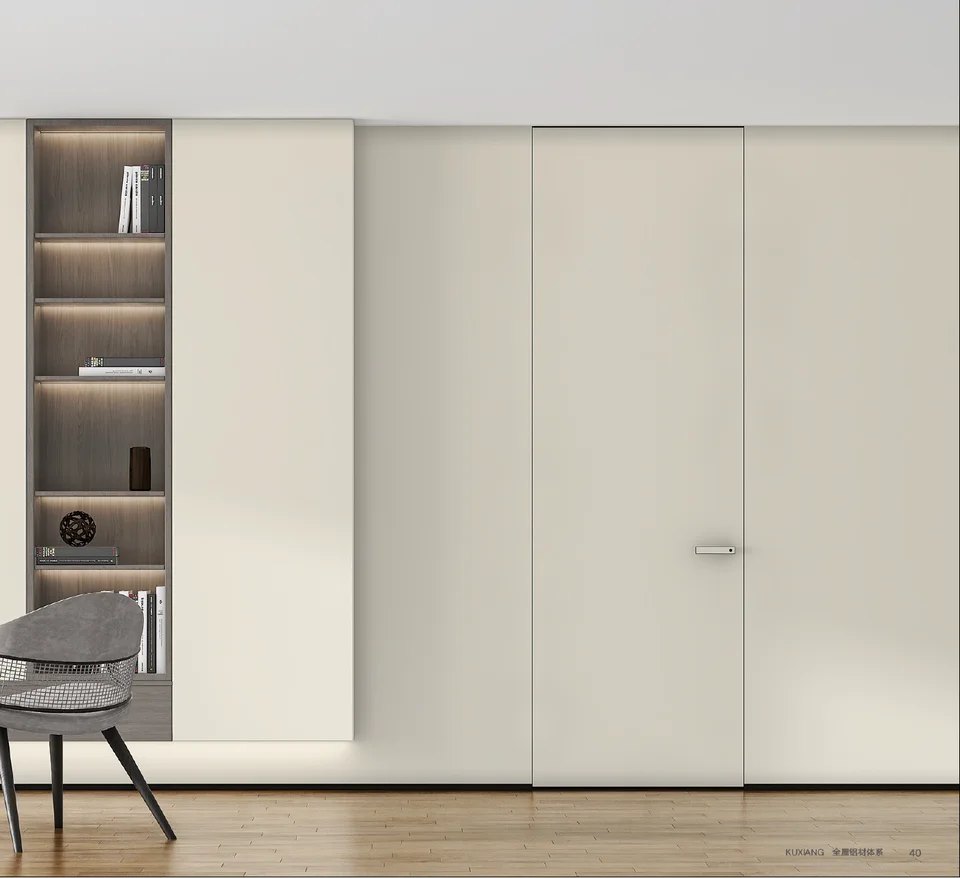

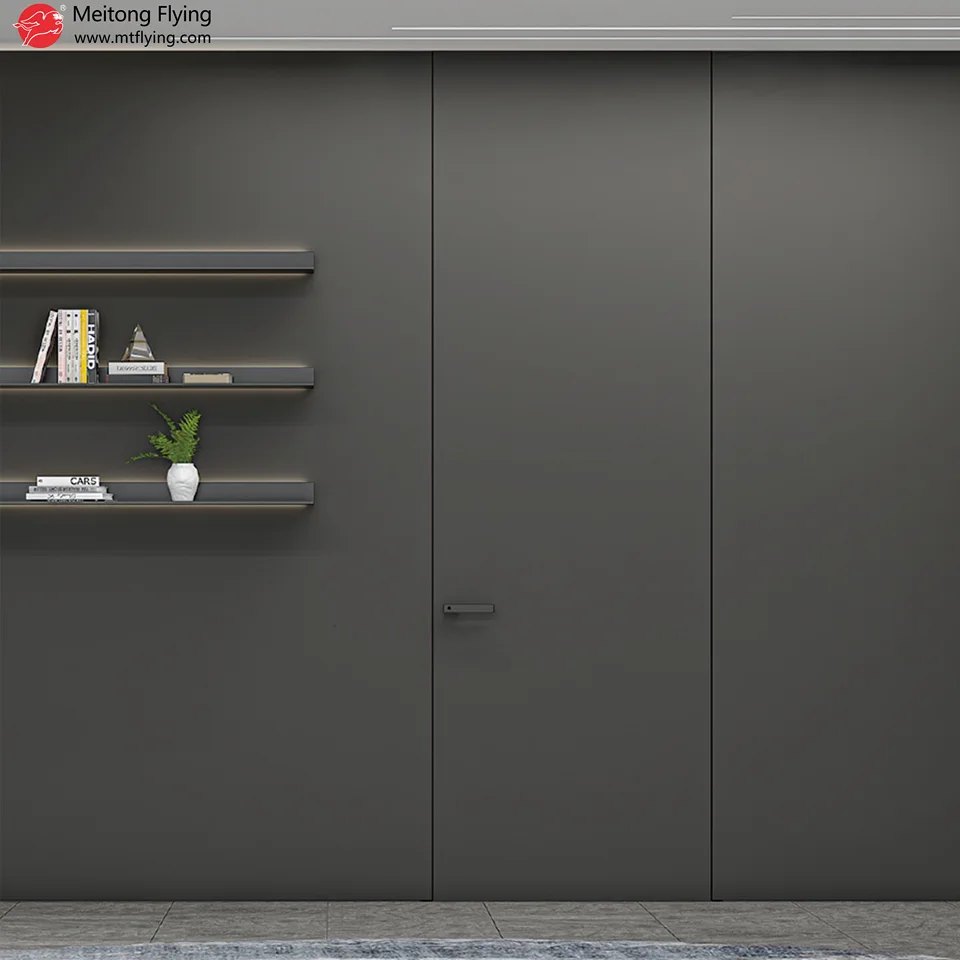

Project photos
HOW TO ORDER
From drawing to delivery
01Send your sizes
Share the opening sizes, wall thickness and quantities.
02Choose the finish
Pick a color, board and lock from our sample cards.
03Approve the sample
We make a pre-production sample before mass production.
04Inspect and ship
Each order gets a final inspection before shipment.
FAQ
Questions about the 50 series aluminum wood door
What is the difference between the 45 and 50 series?
The 50 series has a deeper frame and a fully hidden casing. It is stiffer and better for tall invisible doors.
What is the MOQ for this door?
Finished doors start from 3 square meters. Complete door sets can be ordered from one set.
Can the door match my wall panels?
Yes. Send us your panel color or a sample, and we match the finish.
Get a quote for your project
Send your door list today. We reply with a price, drawings and a sample plan within one working day.
