45 Series Aluminum Wood Door
The 45 series aluminum wood door is our most popular interior door system. It offers the widest choice of styles, boards and finishes. For example, you can order a borderless door, a mother-child double door or a door with an observation window on the same frame.
INTERIOR DOOR SYSTEM · 45 mm FRAME.OVERVIEW
Why choose the 45 series aluminum wood door
Every door in this range is built on a 9.5 × 49.5 mm integrated corner frame. Inside the leaf, an aluminum honeycomb keel keeps the door light and flat. In addition, you can choose 4 mm, 8 mm or 9 mm boards, 1.2 mm pure aluminum plate or 2.2 mm SPC plate.
The door is part of our aluminum wood doors range. Compare it with the T-Shaped Aluminum Wood Door, 50 series aluminum wood door, 55 series aluminum wood door before you decide.
OPENING OPTIONS
Styles available on this frame
A flush face on the room side with a clean shadow gap.
A wide main leaf plus a narrow leaf for large openings.
Add glass or a lintel panel for tall openings up to the ceiling.
TECHNICAL DATA
45 series aluminum wood door specifications
- Main frame: 9.5 × 49.5 mm integrated corner key
- Keel: 24 mm, 32.7 mm, 37 mm or 46.2 mm honeycomb core
- Boards: 4 / 8 / 9 mm board, 1.2 mm aluminum plate, 2.2 mm SPC plate
- Seal: XA-226-1 anti-collision rubber strip
- Finishes: Jazz Black, Moonlight Gray, Galaxy Gray, Milk Tea Ash and 8 wood grains
HARDWARE
Locks and hinges
- Mis lock, small or large lock body
- Cool-Enjoy, KL or ZM one-word minimalist lock
- Five-hole hinge or Guoxuan 9th-generation hidden hinge
- Heaven-earth pivot hinge as an option

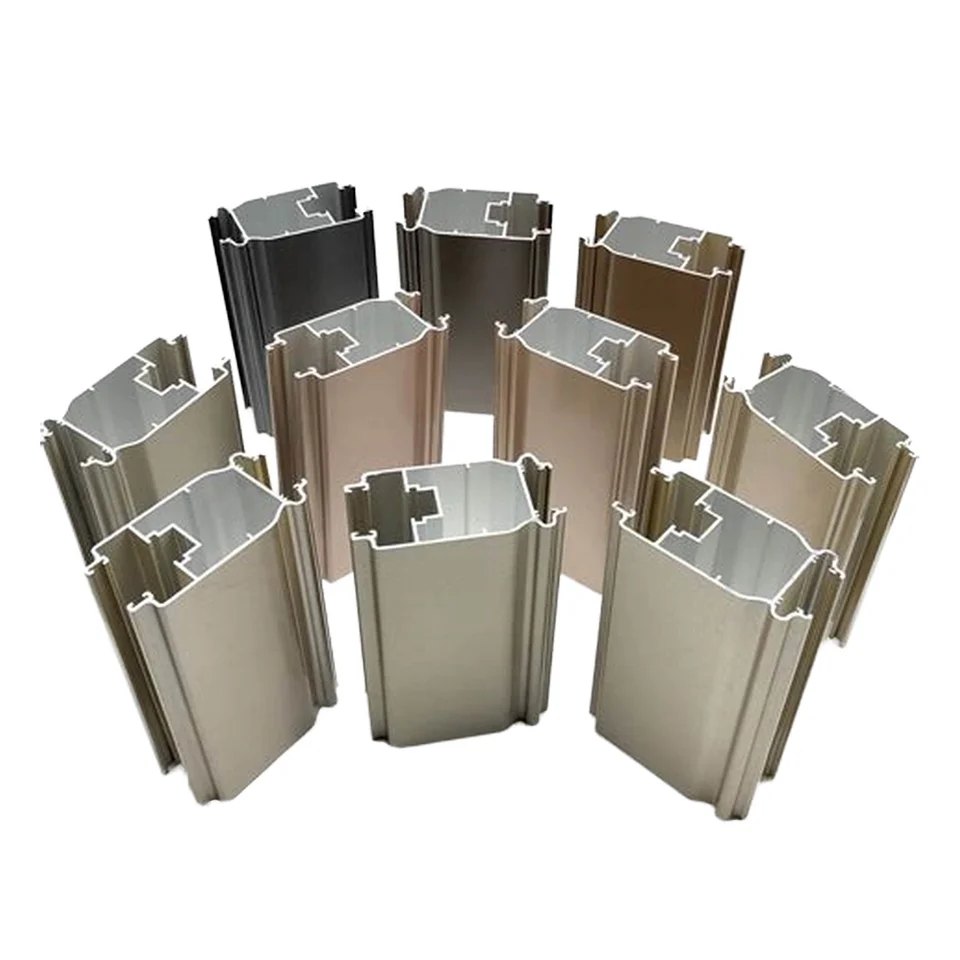

All profiles are 6063-T5 aluminum. Finishes include powder coating, wood-grain film and electrophoretic sand colors.
PRODUCTS
45 Series Aluminum Wood Door products
These listings are open for orders on our Alibaba store. Click a product to see prices, photos and trade terms.
Invisible Frameless Slab DoorUS$80–100 / m² · MOQ 3 m²
Noise-Reduction Aluminum-Wood DoorUS$85–105 / m² · MOQ 1 m²
Flat-Outside Open-Inside Slab Door, 9 mm PanelUS$78–100 / m² · MOQ 1 m²
SPC Board Aluminum-Wood Door (45 System Sub-Door)US$80–100 / m² · MOQ 3 m²
Frameless Aluminum-Wood Door SetUS$2500–3800 / set · MOQ 1 set
Invisible Frameless Door Set, Powder CoatedPrice on request · MOQ 1 set
Flat-Open Door ProfilesPrice on request · MOQ 300 kg
Aluminum-Wood Door Profile, 6063-T5US$3.65 / kg · MOQ 300 kg
Wood-Grain Aluminum Door Frame ProfilePrice on request · MOQ 300 kg
Door Profiles for Bathroom & BedroomPrice on request · MOQ 1 kgGALLERY

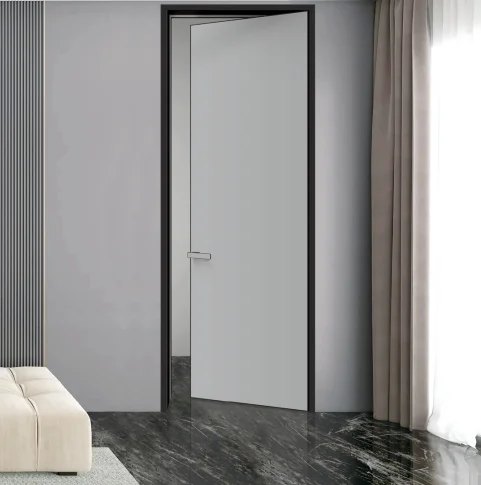

Project photos
HOW TO ORDER
From drawing to delivery
01Send your sizes
Share the opening sizes, wall thickness and quantities.
02Choose the finish
Pick a color, board and lock from our sample cards.
03Approve the sample
We make a pre-production sample before mass production.
04Inspect and ship
Each order gets a final inspection before shipment.
FAQ
Questions about the 45 series aluminum wood door
What is the price of this door?
Finished doors start from about US$78 per square meter. Door sets and profiles are quoted by set or by weight.
Can I buy only the 45 series profiles?
Yes. We supply 6063-T5 frame, keel and cover-plate profiles for workshops that assemble doors locally.
Which board is best for wet rooms?
For bathrooms, choose 1.2 mm aluminum plate or 2.2 mm SPC plate. Both resist moisture and do not swell.
Get a quote for your project
Send your door list today. We reply with a price, drawings and a sample plan within one working day.
