In the realm of contemporary interior architecture, doors and windows serve as critical interfaces between functional engineering and aesthetic design. Meitong Aluminum, a leading innovator in premium door systems, presents the Meitong NICE System Swing Folding Door—a cutting-edge solution that harmonizes structural integrity, operational precision, and design versatility. Engineered for discerning homeowners and architects, this system sets new benchmarks in spatial optimization and luxury living.
Technical Innovation: Transcending Traditional Folding Door Limitations
The Meitong NICE Swing Folding Door addresses long-standing industry challenges through patented advancements in mechanics and material science. Unlike conventional folding doors prone to misalignment, air leakage, and aesthetic compromises, the NICE System integrates:
- Dual-Mechanism Design: Seamlessly combining swing door stability with folding door space efficiency, enabling 90°-180° adjustable opening angles for adaptable traffic flow.

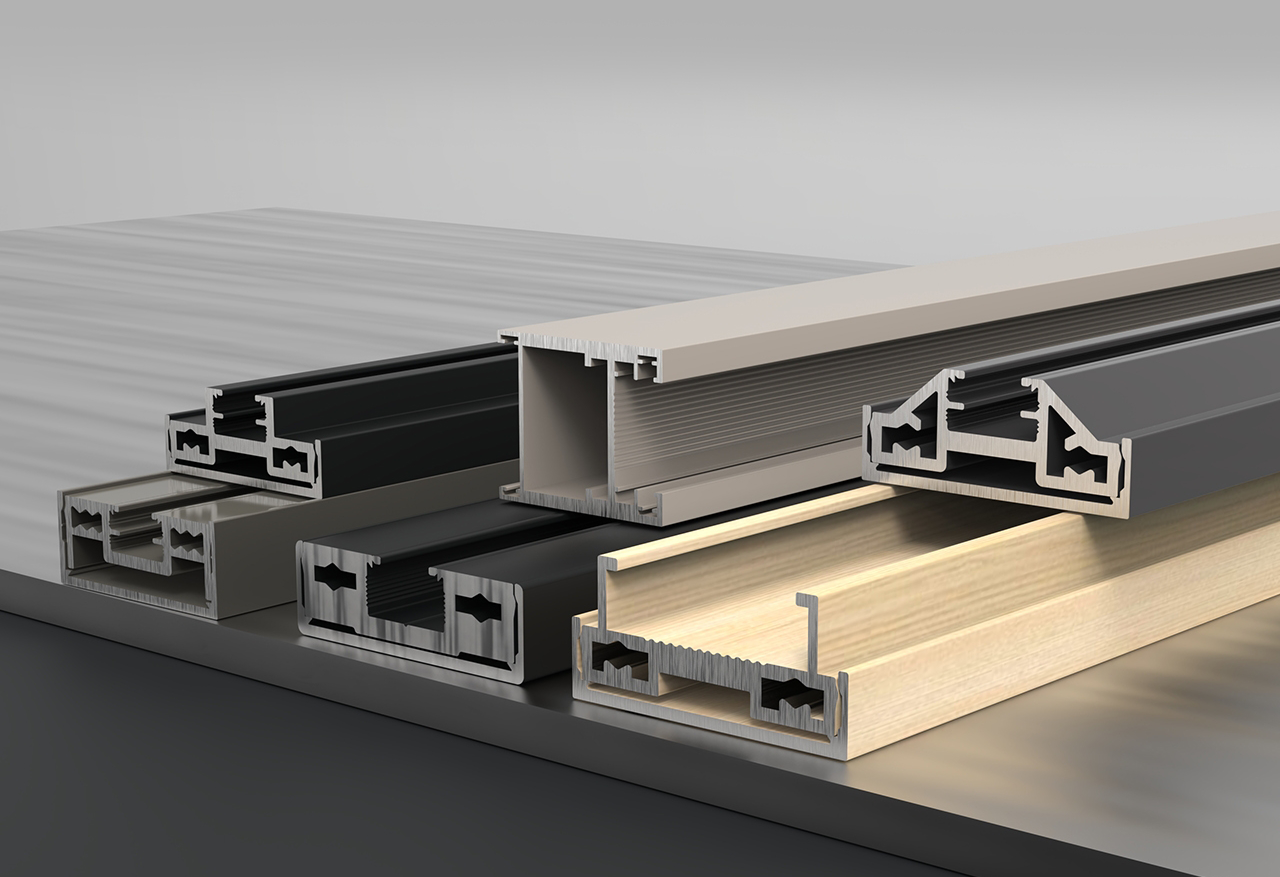

- Structural Reinforcement: Utilizing aerospace-grade aluminum alloys and full-aluminum corner joints to achieve a load-bearing capacity of up to 200kg per panel, ensuring durability in high-traffic environments.
Engineering Excellence: Core Performance Features
1. Three-Dimensional Magnetic Sealing System
The proprietary three-side silent magnetic suction technology employs neodymium magnet strips embedded in the door leaf and frame, creating a hermetic seal with ≤1mm gap tolerance. This innovation:
- Reduces ambient noise by 38-42dB (ISO 354 standard), ideal for sound-sensitive areas like home theaters and executive studies.
- Maintains airtightness under ±50Pa pressure difference, enhancing thermal insulation (U-value ≤1.8W/(m²·K)) and energy efficiency.

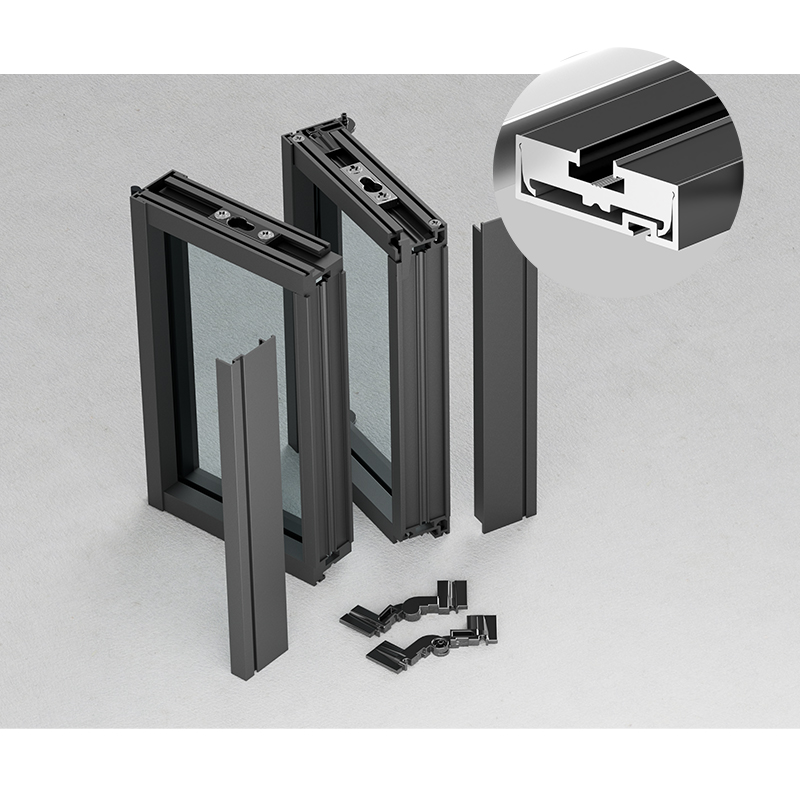

2. Precision-Guided Hinge System
The door’s floor-to-ceiling hinge assembly incorporates anti-sway bearings and self-lubricating bushings, ensuring:
- 100,000-cycle fatigue resistance (ASTM D2671 testing), minimizing maintenance requirements.
- ±1.5° positional accuracy during closure, eliminating gaps and improving weather resistance (IP54 rating for water and dust ingress).
3. Smart Hydraulic Positioning (Optional)
The advanced hydraulic damping system enables:
- Programmable 90° hold-open positioning for 无障碍通行 (accessibility compliance).
- Soft-close functionality with adjustable speed control (0.1-0.5m/s), reducing impact forces by 60% compared to traditional mechanisms.
Design Versatility: Customization for Architectural Coherence
1. Structural Configurations
The NICE System offers modular design options to suit diverse spatial requirements:
| Configuration | Panel Quantity | Opening Width Range | Application Scenarios |
|---|---|---|---|
| Single Swing-Folding | 2-3 panels | 800-1200mm | Balconies, small living areas |
| Double Swing-Folding | 4-6 panels | 1500-3000mm | Open-plan kitchens, offices |
| Offset Hinge Design | 2 panels | 600-900mm | Narrow corridors |
2. Aesthetic Customization
- Finishes: Anodized aluminum (20+ standard colors), wood-grain laminates (FSC-certified), and metallic coatings (brushed nickel, matte black).
- Glazing Options: Low-E insulated glass (24mm thickness), laminated safety glass, and custom etched/artistic glass panels.
- Style Compatibility: Engineered to align with architectural themes ranging from Classical Revival (ornate moldings) to Minimalist Modern (frameless profiles).
Quality Assurance: Meitong’s Manufacturing Standards
Every NICE System door undergoes rigorous quality control:
- Material Testing: Salt spray corrosion resistance (ASTM B117) exceeding 1000 hours.
- Functionality Testing: Cyclic load testing (20,000 cycles) for hinges and magnetic components.
- Environmental Compliance: RoHS-certified materials and ISO 14001-compliant production processes.
Applications & Client Testimonials
Case Study: Luxury Penthouse, Shanghai
A 4-panel double swing-folding door with bronze anodized finish and low-E glass was installed to separate a living room from a terrace. The system’s slim profile (45mm frame width) preserved unobstructed views while achieving a noise reduction of 40dB in a high-rise environment.
“The NICE System perfectly balances structural robustness with minimalist design. The magnetic sealing and hydraulic positioning provide a premium feel unmatched by other brands.”
— Li Wei, Lead Architect, Shanghai Design Studio
— Li Wei, Lead Architect, Shanghai Design Studio
Technical Specifications at a Glance
| Parameter | Standard Value | Custom Options |
|---|---|---|
| Panel Thickness | 40-60mm | Up to 80mm |
| Sound Insulation | Rw 38dB | Rw 45dB (upgraded glass) |
| Wind Load Resistance | 1.5kPa (C4 class) | 3.0kPa (C5 class) |
| Opening Force | ≤40N | ≤25N (accessibility) |
Partner with Meitong for Premium Solutions
The Meitong NICE System Swing Folding Door is available through our global network of certified installers. Contact us for:
- Technical drawings and BIM models
- Custom design consultations
- Sample testing and installation support
